Fortigate Basic Lab Setup in eve-ng/Pnet-Lab

This post will cover setting up a small Fortigate Firewall lab. I will be mentioning all the commands which I use in this lab. In the above lab, I have one Fortigate FW, two routers, two switches, and two Windows machines.

I am two Vlans in LAN and MGMT and Internet traffic is in the same lab

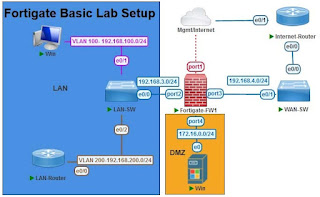

IP details

- Vlan 100 - 192.168.100.1/24

- Vlan 200 - 192.168.200.1/24

- Fortigate-FW1 Port1 - Management port - 192.168.47.10/24

- Fortigate-FW1 Port2 - Data Port - 192.168.3.1/24

- Fortigate-FW1 Port3 - Data Port - 192.168.4.1/24

- Fortigate-FW1 Port4 - Data Port -172.16.0.1/24

- Internet-Router - Eth0/0 - 192.168.4.2/24

- Internet-Router - Eth0/1 - 192.168.47.11/24

- Win Lan-PC - 192.168.100.2/24

- Win DMZ-PC - 172.16.0.2/24

Table of Content

Prerequisites
Firewall Introduction
Where to download the FortiGate Virtual Firewall image?
Configure Virtual network interfaces for FortiGate
Deployment of FortiGate VM image in VMWare
Configuring the lab devices
Accessing FortiGate Firewall GUI
Configuration all devices
Configuring other data ports on the FortiGate
Configure routing on the fortigate and Policy to allow traffic from LAN to internet
Testing the traffic flow
How to take fortigate backup?

Prerequisites: -

- Computer having 16GB of RAM, Minimum i5 Processor

- Vmware workstation

Below are the virtual images I am using in the lab

- Fortinet-FGT-7.0.3

- i86bi_linux_l2-adventerprisek9-ms.SSA.high_iron_20190423.bin

- L3-ADVENTERPRISEK9-M-15.4-2T.bin

Firewall Introduction: -

Fortigate is a Firewall product from Fortinet. Fortigate is a hardware or software-based solution. In this lab, we are using virtual images in PnetLab.

Where to download the FortiGate Virtual Firewall image?

The virtual FW image can be downloaded from the official site or any third-party site

link or link 2

Deployment of FortiGate VM image in VMWare

- Upload all the images in VMware and start the PnetLab. Watch my youtube channel to learn how to upload virtual images in Eve-ng and PnetLab.

Configuring the lab devices

at first, I will configure the FortiGate management interface and access it via SSH and Web-UI

Forti OS reference commands

https://docs.fortinet.com/document/fortigate/7.2.4/cli-reference/84566/fortios-cli-reference

FortiOS Administration-guide

https://docs.fortinet.com/document/fortigate/7.2.4/administration-guide/954635/getting-started

if you are not sure about the commands on FortiOS you can follow the command reference guide.

FortiGate-VM64-KVM login: admin

Password:

You are forced to change your password. Please input a new password.

New Password:

Confirm Password:

New password must not be the same as the old password.

New Password:

Confirm Password:

Welcome!

FortiGate-VM64-KVM #

- Fortigate virtual machine comes with 15 days trial version which has some limitations

- Verify the status of FortiGate by putting the below command

FortiGate-VM64-KVM # get system status

Version: FortiGate-VM64-KVM v7.0.3,build0237,211207 (GA)

Virus-DB: 1.00000(2018-04-09 18:07)

Extended DB: 1.00000(2018-04-09 18:07)

Extreme DB: 1.00000(2018-04-09 18:07)

AV AI/ML Model: 0.00000(2001-01-01 00:00)

IPS-DB: 6.00741(2015-12-01 02:30)

IPS-ETDB: 6.00741(2015-12-01 02:30)

APP-DB: 6.00741(2015-12-01 02:30)

INDUSTRIAL-DB: 6.00741(2015-12-01 02:30)

IPS Malicious URL Database: 1.00001(2015-01-01 01:01)

Serial-Number: FGVMEVRDGSJCYOFD

License Status: Valid

Evaluation License Expires: Wed May 24 07:52:41 2023

VM Resources: 1 CPU/1 allowed, 997 MB RAM/2048 MB allowed

Log hard disk: Not available

Hostname: FortiGate-VM64-KVM

Operation Mode: NAT

Current virtual domain: root

Max number of virtual domains: 1

Virtual domains status: 1 in NAT mode, 0 in TP mode

Virtual domain configuration: disable

FIPS-CC mode: disable

Current HA mode: standalone

Branch point: 0237

Release Version Information: GA

FortiOS x86-64: Yes

System time: Tue May 9 09:58:06 2023

Last reboot reason: power cycle

- As you see above FortiGate is having one VDOM "root" and the default FW mode is NAT
- port1 is configured as a management interface but we will configure it according to our requirement

- Allowing https, ssh, ping fgm access on port1

FortiGate-VM64-KVM # config system interface

FortiGate-VM64-KVM (interface) # edit port1

FortiGate-VM64-KVM (port1) # set mode static

FortiGate-VM64-KVM (port1) # set ip 192.168.47.10 255.255.255.0

FortiGate-VM64-KVM (port1) # set allowaccess http https ssh ping fgfm

FortiGate-VM64-KVM (port1) # set description MGMT-PORT

FortiGate-VM64-KVM (port1) # end

Verify the configured interface

FortiGate-VM64-KVM # show system interface

config system interface

edit "port1"

set vdom "root"

set mode static

set ip 192.168.47.10 255.255.255.0

set allowaccess ping https ssh http fgfm

set type physical

set description "MGMT-PORT"

next

end

- Fortigate will automatically save the config once you come out of the config mode

- I will ping my management PC from the firewall

Fortigate-FW # execute ping 192.168.47.2

PING 192.168.47.2 (192.168.47.2): 56 data bytes

64 bytes from 192.168.47.2: icmp_seq=0 ttl=128 time=0.9 ms

64 bytes from 192.168.47.2: icmp_seq=1 ttl=128 time=0.5 ms

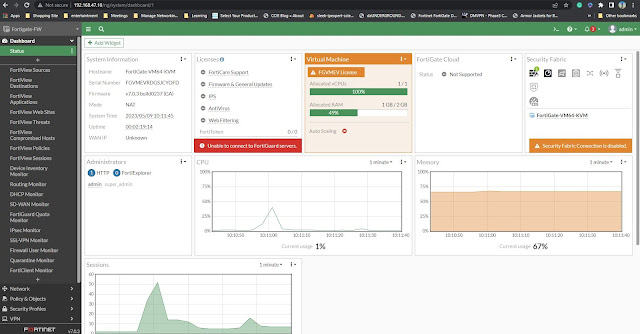

As you can see I can access the FW via HTTPS from my management PC. Once you enter the credential, It starts a wizard to configure basic settings

select optimal or comprehensive mode and finish the wizard setup.

Now our Fortigate is accessible and trust me FortiGate GUI is very easy to navigate.

- Configuration all devices

======================================

LAN-SW

======================================

enable

config t

hostname LAN-SW

no ip domain-lookup

vlan100

name MARKETING

vlan 200

name SALES

interface Ethernet0/0

switchport trunk encapsulation dot1q

switchport mode trunk

interface Ethernet0/1

switchport access vlan 100

spanning-tree portfast edge

interface Ethernet0/2

switchport access vlan 200

duplex full

spanning-tree portfast edge

interface Ethernet0/0

no switchport

ip address 192.168.3.2 255.255.255.0

end

interface Vlan100

ip address 192.168.100.1 255.255.255.0

no shut

interface Vlan200

ip address 192.168.200.1 255.255.255.0

no shut

ip routing

ip route 0.0.0.0 0.0.0.0 192.168.3.1

end

write

=========================================

WAN-SW#

=========================================

enable

config t

hostname WAN-SW

end

write

==========================================

Internet-Router

==========================================

enable

config t

hostname Internet-Router

interface Ethernet0/0

ip address 192.168.4.2 255.255.255.0

ip nat inside

interface Ethernet0/1

ip address 192.168.47.11 255.255.255.0

ip nat outside

access-list 1 permit any

ip nat inside source list 1 interface Ethernet0/1 overload

ip route 0.0.0.0 0.0.0.0 192.168.47.2 name INTERNET-NEXT-HOP

ip route 192.168.100.0 255.255.255.0 192.168.4.1

ip route 192.168.200.0 255.255.255.0 192.168.4.1

end

write

Internet-Router#ping 192.168.47.2

Type escape sequence to abort.

Sending 5, 100-byte ICMP Echos to 192.168.47.2, timeout is 2 seconds:

!!!!!

Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/1 ms

Internet-Router#

====================================

LAN-ROUTER

====================================

enable

config t

hostname LAN-ROUTER

interface Ethernet0/0

ip address 192.168.200.2 255.255.255.0

no shutdown

ip route 0.0.0.0 0.0.0.0 192.168.200.1

end

write

LAN-ROUTER#ping 192.168.200.1

Type escape sequence to abort.

Sending 5, 100-byte ICMP Echos to 192.168.200.1, timeout is 2 seconds:

!!!!!

Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/1 ms

LAN-ROUTER#

======================================

LAN-WIN-PC

======================================

- Assign an IP address - 192.168.3.2 255.255.255.0 and default-gateway 192.168.100.1

- Ping 192.168.3.1

======================================

DMZ-WIN-PC

======================================

- Assign an IP address - 172.16.0.2 255.255.255.0 and default-gateway 172.16.0.1

- Ping 172.16.0.1

======================================

- Now we will configure other interfaces and routing on the FW to reach the internet

- Configuring other data ports on the FortiGate

config system interface

edit "port2"

set vdom "root"

set mode static

set ip 192.168.3.1 255.255.255.0

set allowaccess ping

set type physical

set description "LAN-TRUST-PORT"

next

edit "port3"

set vdom "root"

set mode static

set ip 192.168.4.1 255.255.255.0

set allowaccess ping

set type physical

set description "LAN-UNTRUST-PORT"

next

edit "port4"

set vdom "root"

set mode static

set ip 172.16.0.1 255.255.255.0

set allowaccess ping

set type physical

set description "DMZ-TRUST-PORT"

next

end

- Pinging all directly connected devices from the Fortigate

Fortigate-FW # execute ping 192.168.3.2

PING 192.168.3.2 (192.168.3.2): 56 data bytes

64 bytes from 192.168.3.2: icmp_seq=0 ttl=255 time=1.1 ms

64 bytes from 192.168.3.2: icmp_seq=1 ttl=255 time=0.7 ms

Fortigate-FW # execute ping 192.168.4.2

PING 192.168.4.2 (192.168.4.2): 56 data bytes

64 bytes from 192.168.4.2: icmp_seq=1 ttl=255 time=1.6 ms

64 bytes from 192.168.4.2: icmp_seq=2 ttl=255 time=1.3 ms

Fortigate-FW # execute ping 172.16.0.2

PING 172.16.0.2 (172.16.0.2): 56 data bytes

64 bytes from 172.16.0.2: icmp_seq=0 ttl=128 time=4.8 ms

64 bytes from 172.16.0.2: icmp_seq=1 ttl=128 time=312.7 ms

- Configure routing on the fortigate and Policy to allow traffic from LAN to internet

- Configuring a default route towards internet router to reach the internet

config router static

edit 1

set gateway 192.168.4.2

set device "port3"

set comment "TO_Internet_TRAFFIC"

next

- Configuring static route for vlan 100 and vlan 200 reachability

config router static

edit 2

set dst 192.168.100.0 255.255.255.0

set gateway 192.168.3.2

set device "port2"

set comment "TO_VLAN100"

next

edit 3

set dst 192.168.200.0 255.255.255.0

set gateway 192.168.3.2

set device "port2"

set comment "TO_VLAN200"

next

end

- As you can see below, I can ping both the VLANS and internet as well.

Fortigate-FW # execute ping 192.168.100.2

PING 192.168.100.2 (192.168.100.2): 56 data bytes

64 bytes from 192.168.100.2: icmp_seq=0 ttl=127 time=2.3 ms

64 bytes from 192.168.100.2: icmp_seq=1 ttl=127 time=1.0 ms

--- 192.168.100.2 ping statistics ---

2 packets transmitted, 2 packets received, 0% packet loss

round-trip min/avg/max = 1.0/1.6/2.3 ms

Fortigate-FW # execute ping 192.168.200.2

PING 192.168.200.2 (192.168.200.2): 56 data bytes

64 bytes from 192.168.200.2: icmp_seq=0 ttl=254 time=1.0 ms

64 bytes from 192.168.200.2: icmp_seq=1 ttl=254 time=1.0 ms

--- 192.168.200.2 ping statistics ---

2 packets transmitted, 2 packets received, 0% packet loss

round-trip min/avg/max = 1.0/1.0/1.0 ms

Fortigate-FW # execute ping 8.8.8.8

PING 8.8.8.8 (8.8.8.8): 56 data bytes

64 bytes from 8.8.8.8: icmp_seq=0 ttl=127 time=295.3 ms

64 bytes from 8.8.8.8: icmp_seq=1 ttl=127 time=261.9 ms

64 bytes from 8.8.8.8: icmp_seq=2 ttl=127 time=256.3 ms

--- 8.8.8.8 ping statistics ---

3 packets transmitted, 3 packets received, 0% packet loss

round-trip min/avg/max = 256.3/271.1/295.3 ms

- Let's configure Fortigate to allow traffic only from VLAN 100 to the internet

- In order to achieve this we need to create an address object and a Policy, by default all the traffic is denied from any to any. I am trying to ping internet from my lan PC but it's not pinging because no policy on the FW

- Configuring object

config firewall address

edit "VLAN-100"

set uuid 0a162190-eee6-51ed-cf39-2e97ebcc3967

set comment "VLAN_100_NETWORK"

set subnet 192.168.100.0 255.255.255.0

next

end

- Configuring a policy and I am allowing opening all the service ports in the policy but you can open as per the requirement

config firewall policy

edit 1

set name "VLAN100_TO_INTERNET"

set srcintf "port2"

set dstintf "port3"

set action accept

set srcaddr "VLAN-100"

set dstaddr "all"

set schedule "always"

set service "ALL"

set logtraffic all

set logtraffic-start enable

set comments "Created by Dinesh for testing"

next

end

- Testing Traffic Flow

- I can access from my VLAN 100 pc. Congratulation if you are follwing the lab then you will achieve this milestone.

- We can see firewll is having the hits and working perfectly fine.

- Navigate to Logs & Report to see the logs

- We can capture and see the logs if we have any issue.

Fortigate-FW # diagnose sniffer packet port2 none 1 20

Using Original Sniffing Mode

interfaces=[port2]

filters=[none]

1.621218 192.168.100.2.56682 -> 4.2.2.2.53: udp 28

1.937322 4.2.2.2.53 -> 192.168.100.2.56682: udp 44

1.943106 192.168.100.2 -> 142.251.39.110: icmp: echo request

2.245814 142.251.39.110 -> 192.168.100.2: icmp: echo reply

2.942900 192.168.100.2 -> 142.251.39.110: icmp: echo request

3.257274 142.251.39.110 -> 192.168.100.2: icmp: echo reply

3.950927 192.168.100.2 -> 142.251.39.110: icmp: echo request

4.263038 142.251.39.110 -> 192.168.100.2: icmp: echo reply

4.477100 192.168.100.2.54520 -> 4.2.2.2.53: udp 32

4.779473 4.2.2.2.53 -> 192.168.100.2.54520: udp 48

4.781009 192.168.100.2.49362 -> 142.250.179.100.443: syn 3104154528

4.781193 192.168.100.2.49363 -> 142.250.179.100.443: syn 3751954507

4.781723 192.168.100.2.49364 -> 142.250.179.100.443: syn 3245179220

4.782329 192.168.100.2.49365 -> 142.250.179.100.443: syn 3815445466

4.782500 192.168.100.2.49366 -> 142.250.179.100.443: syn 3213634623

4.783049 192.168.100.2.49367 -> 142.250.179.100.443: syn 2598285052

4.963304 192.168.100.2 -> 142.251.39.110: icmp: echo request

5.079899 142.250.179.100.443 -> 192.168.100.2.49362: syn 1522942622 ack 3104154529

5.080893 192.168.100.2.49362 -> 142.250.179.100.443: ack 1522942623

5.081772 192.168.100.2.49362 -> 142.250.179.100.443: psh 3104154529 ack 1522942623

- How to take fortigate backup

- Backup configuration file can allow you to restore it into earler version as well.

there you have to download in the local pc or to take it into usb disk and the backup can be encraypted if you select encryption option.

once you click on ok, you will see one .conf file is getting downloaded

That's all guys, Thank you for patience and I hope you will be able to do the same. Do Labbbbiiiiiiiiing

I hope this has been informative for you. If it seems helpful then Like, Share and Don’t forget to subscribe and follow me for the upcoming posts

https://www.youtube.com/channel/UC0-p23p1xWsZsTXHUQ7CiJg

https://www.facebook.com/networkinginfo/

https://twitter.com/Dj1Pali

https://www.instagram.com/a_bhartiya_rider/

https://www.linkedin.com/in/dinesh-jangid-515b6a23/

"Exploring New Diamention"

Fortigate Basic Lab Setup in eve-ng/Pnet-Lab

Table of Content

Prerequisites: -

Firewall Introduction: -

Where to download the FortiGate Virtual Firewall image?

Deployment of FortiGate VM image in VMWare

Configuring the lab devices

- Configuration all devices

- Configuring other data ports on the FortiGate

- Configure routing on the fortigate and Policy to allow traffic from LAN to internet

- Testing Traffic Flow

- How to take fortigate backup

Post a Comment

No comments

Subscribe to my YouTube

Get new posts by email:

Blog Archive

Categories

Popular Posts

Facebook

About Me

Random Posts

Recent Posts

Popular Posts

"Exploring New Diamention"

Fortigate Basic Lab Setup in eve-ng/Pnet-Lab

Table of Content

Prerequisites: -

Firewall Introduction: -

Where to download the FortiGate Virtual Firewall image?

Deployment of FortiGate VM image in VMWare

Configuring the lab devices

- Configuration all devices

- Configuring other data ports on the FortiGate

- Configure routing on the fortigate and Policy to allow traffic from LAN to internet

- Testing Traffic Flow

- How to take fortigate backup

Related Posts

Post a Comment

No comments

Subscribe to my YouTube

Get new posts by email:

Blog Archive

Categories

Popular Posts

Facebook

About Me

Random Posts

Recent Posts

Popular Posts
